ÑÏÅÖÒÅÕÍÈÊÀ - ôðîíòàëüíûå ïîãðóç÷èêè

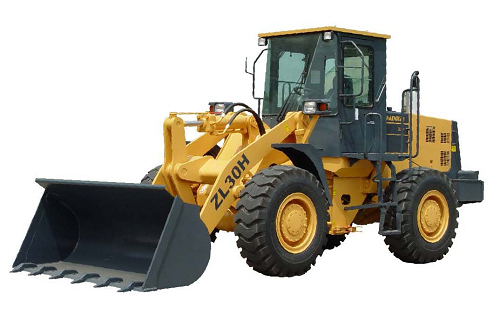

ZL30H


Model ZL30H
Bucket capacity 1.7m3
Wheel base 2750mm
Tread 1900mm
Min.ground clearance 370mm
Rated load 3000kg
Ma x .breakout force 96Kn
Dump reach 1030mm
Min.turning radius 5600/5205mm
Lifting time of bucket 5.1s
Lowering time of bucket 3.0s
Dumping time 1.1s
Ma x .travel speed 36km/h
Engine Cummins 6BT5.9
Rated power 87kw/2200rpm
Fuel tank capacity 130L
Hydraulic oil tack capacity 120L
Operation weight 10200kg
Overall dimension 6863 x 2350 x 3090mm

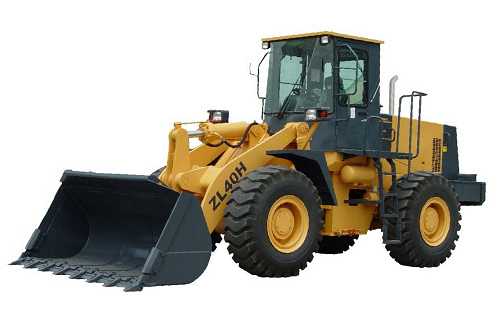

ZL40H



Model ZL40H
Bucket capacity 2.3m3
Wheel base 3080mm
Tread 2050mm
Min.ground clearance 400mm
Rated load 4000kg
Ma x .breakout force 134Kn
Dump reach 1050mm
Min.turning radius 6300/5730mm
Lifting time of bucket 6.2s
Lowering time of bucket 3.8s
Dumping time 1.8s
Ma x .travel speed 36km/h
Engine Cummins 6BTA5.9
Rated power 126kw/2200rpm
Fuel tank capacity 200L
Hydraulic oil tack capacity 150L
Operation weight 13200kg
Overall dimension 7248 x 2570 x 3430mm

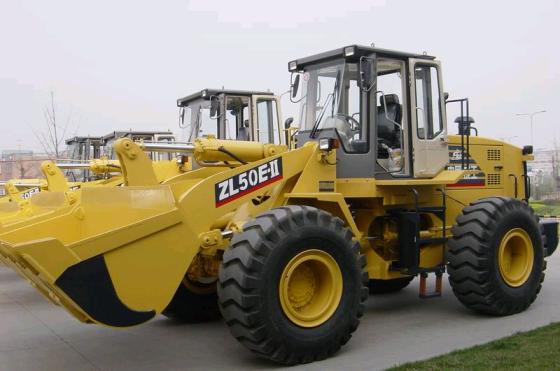

ZL50E



Model ZL50E
Bucket capacity 3.0m3
Wheel base 3100mm
Tread 2200mm
Min.ground clearance 450mm
Rated load 5000kg
Ma x .breakout force 160Kn
Dump reach 1190mm
Digging depth 165mm
Min.turning radius 6575/5970mm
Lifting time of bucket 6.2s
Lowering time of bucket 3.8s
Dumping time 1.2s
Ma x .travel speed 38.2km/h
Engine Chinese engine
Rated power 162kw/2100rpm
Fuel tank capacity 250L
Hydraulic oil tack capacity 180L
Operation weight 16300kg
Overall dimension 8200 x 2800 x 3450mm

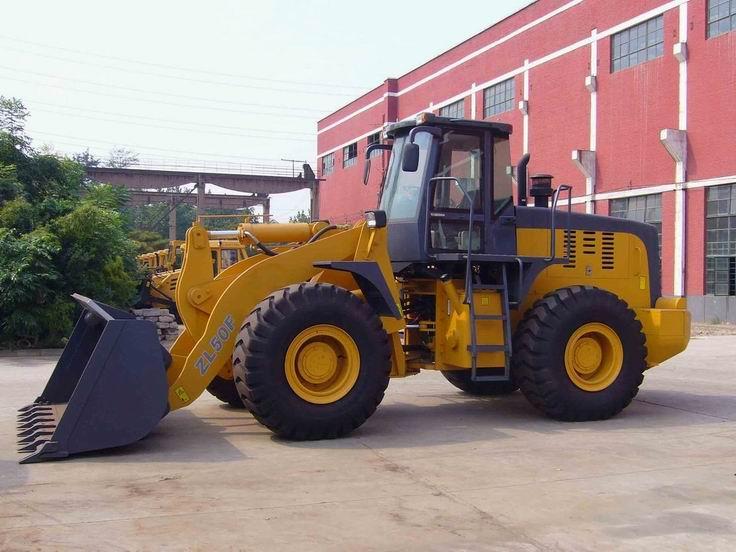

ZL50F



Ìîäåëü ZL50F
Îáúåì êîâøà 2.5-3.5m3
Wheel base 3350mm
Tread 2200mm
Min. êëèðåíñ 440mm
Ãðóçîïîäúåìíîñòü 5000kg
Ma x . òÿãîâîå óñèëèå íà êîíöå ñòðåëû 165Kn
Ma x . traction force 160Kn
Âûñîòà âûãðóçêè 3280mm
Äàëüíîñòü âûãðóçêè 1180mm
Ìèí. âûñîòà âûãðóçêè 165mm
Min. ðàäèóñ ïîâîðîòà (outside of the shovel blade) 6770 mm
Ma x . ïðåîäîëåâàåìûé ïîäúåì 28%
Óãîë ïîâîðîòà 37o
Ma x . ñêîðîñòü 37km/h
Äâèãàòåëü STEYR-WD615 67G3-36
Ìîùíîñòü äâèãàòåëÿ 165kw/2200rpm
Îáúåì òîïëèâíîãî áàêà 280L
Îáúåì ãèäðàâëè÷åñêîãî (ìàñëÿíîãî) áàêà 210L
Âåñ 16500kg
Ãàáàðèòû 7900 x 2950 x 3450 mm

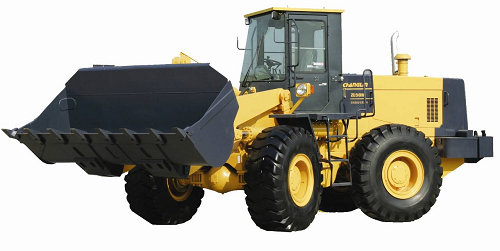

ZL50G-6


Model ZL50G-6
Bucket capacity 3.0m3
Wheel base 3200mm
Tread 2200mm
Min.ground clearance 450mm
Rated load 5000kg
Ma x .breakout force 160Kn
Dump reach 1107mm
Digging depth 210mm
Min.turning radius 5970/5775mm
Lifting time of bucket 5.8s
Lowering time of bucket 3.8s
Dumping time 1.2s
Ma x .travel speed 39km/h
Engine CAT33068/ Caterpilalr C6121
Rated power 160kw/2200rpm
Transmission ZF
Drive a x le Komatsu
Fuel tank capacity 250L
Hydraulic oil tack capacity 220L
Operation weight 16500kg
Overall dimension 8427 x 2800 x 3540mm
Option HUSCO joystick

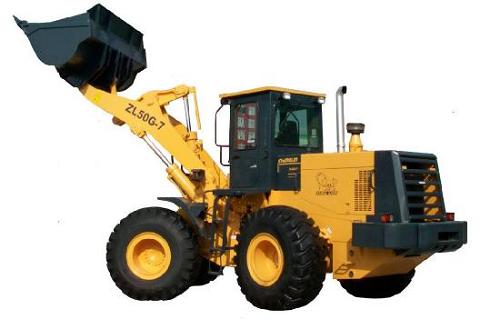

ZL50G-5/6/7


Model ZL50G-5/6/7
Bucket capacity 3.0m3
Wheel base 3200mm
Tread 2200mm
Min.ground clearance 450mm
Rated load 5000kg
Ma x .breakout force 160Kn
Dump reach 1107mm
Digging depth 210mm
Min.turning radius 5970/5775mm
Lifting time of bucket 5.8s
Lowering time of bucket 3.8s
Dumping time 1.2s
Ma x .travel speed 39km/h
Engine 6CTAA8.3
Rated power 160kw/2200rpm
Fuel tank capacity 250L
Hydraulic oil tack capacity 220L
Operation weight 16400kg
Overall dimension 8427 x 2800 x 3540mm

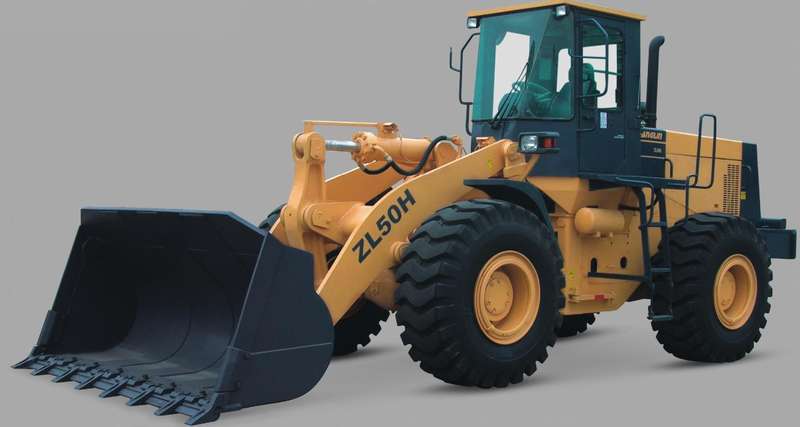

ZL50H



Ïîäðîáíîå îïèñàíèå ìîæíî ïîñìîòðåòü çäåñü
(ôîðìàò "pdf" - Adobe Acrobat Reader)

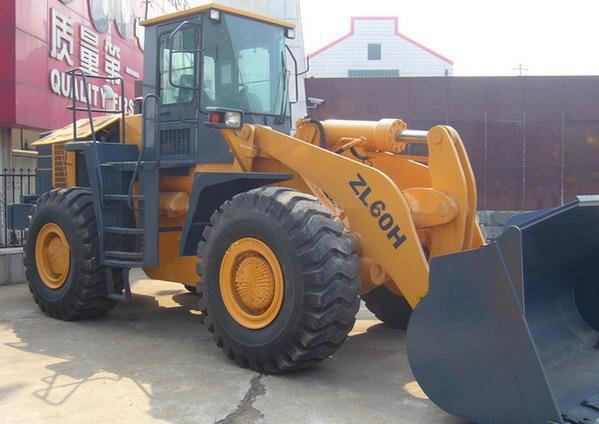

ZL60H



Model ZL60H
Bucket capacity 3.5m3
Wheel base 3300mm
Tread 2300mm
Min.ground clearance 460mm
Rated load 6500kg
Ma x .breakout force 186Kn
Dump reach 1229mm
Digging depth 212mm
Min.turning radius 6400/6870mm
Lifting time of bucket 6.0s
Lowering time of bucket 3.9s
Dumping time 1.9s
Ma x .travel speed 36km/h
Engine Cummins 6CTAA8.3
Rated power 179kw/2200rpm
Gear bo x ZF
Fuel tank capacity 350L
Hydraulic oil tack capacity 250L
Operation weight 18600kg
Overall dimension 8280 x 2897 x 3565mm
Äîïîëíèòåëüíî êîíäèöèîíåð
